UNI-T 39C+ Digital Multimeter
Modern automatic range digital multimeter, UNI-T UT39A +; Resistance/capacitance/NCV/frequency/hFE/temperature test.
4.900,00 DA
UT39C + digital multimeter
The modern digital multimeters of the UT39 + series are portable devices designed for the electrical industry. They have an overvoltage and overcurrent alarm and a high voltage protection, triggered in case of malfunction.
1. Voltage measurement 1000V dc
2. Voltage measurement 750V ac
3. Measurement of 10A DC/AC current
4. Resistance/capacity
5. hFE
6. Diode/continuity test
| Spécifications | Gamme | UT39A + |
| Tension cc (V) | 400mV/4V/40V/400V/1000V | ±(0.5% + 5) |
| Tension ca (V) | 4V/40V/400V/750V | ±(0.8% + 3) |
| Courant continu (A) | 40uA/400uA/4mA/40mA/400mA/10A | ±(0.8% + 3) |
| Courant ca (A) | 40mA/400mA/10A | ±(1% + 2) |
| Résistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4mΩ/200MΩ | ±(0.8% + 2) |
| Capacité (F) | 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF | ±(4% + 5) |
| Caractéristiques | ||
| Affichage du nombre | 4000 | |
| Transistor hFE | & Radic; | |
| Diode | & Radic; | |
| Réponse en fréquence | 40Hz ~ 400Hz | & Radic; |
| Sélection de la gamme | Manuel | |
| Test de continuité | & Radic; | |
| Maintien des données | & Radic; | |
| Rétro-éclairage | & Radic; | |
| Indication de batterie faible | & Radic; | |
| Mise hors tension automatique | & Radic; | |
| Caractéristiques générales | ||
| Puissance | Batterie 1.5V (R03)× 2 | |
| Affichage | 56.5mm x 36mm | |
| Couleur du produit | Rouge et gris | |
| Poids net du produit | 330g | |
| Taille du produit | 175mm x 83mm x 53mm | |
| Accessoires Standard | Fils de Test | |
Related Products
Model: Mechanic 530
-Product Volume: 550 ml
-Applications: Specifically designed for use on mobile phones, tablet PCs, laptops, shell surfaces, plastic surfaces, electrical components, and circuit boards.
-Primary Function: Effectively removes adhesives and cleans stains.
-Key Use Case: Especially efficient for removing adhesives during screen repairs or replacements on smartphones and other electronic devices.
-Evaporation Rate: Evaporates quickly for enhanced efficiency and ease of use.
-Versatility: Suitable for a wide range of applications across different electronics and surfaces.
-Environmental Impact: Formulated to be environmentally safe, ensuring minimal harmful effects during usage.

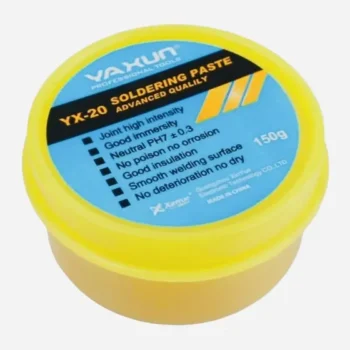

Yaxun Yx-20 Solder Flux Resin Yaxun Yx-20 high temperature connection electronic equipment Made from non-toxic materials Flexible paste for tin fittings is actually used during welding.
