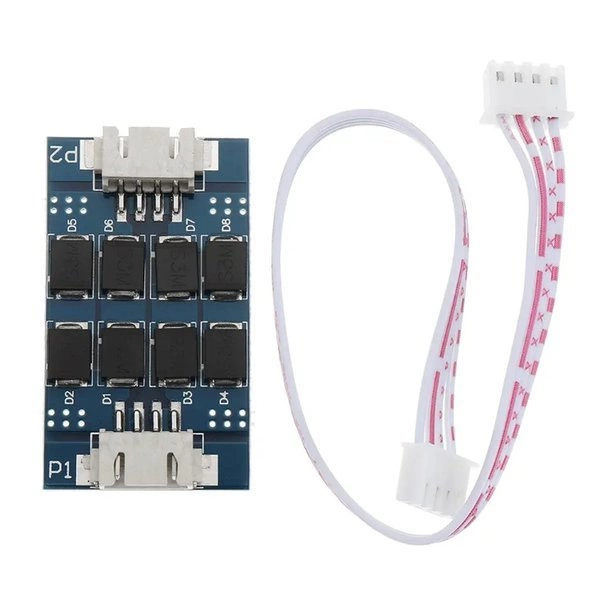

TL-Smoother – Filtering Module for Stepper Motor Drivers of 3D Printers
The TL-Smoother is a module that can be added to stepper motor drivers (A4988, DRV8825, etc.) that are utilized in 3D printers and CNC.
Its role is to reduce vibrations, ripples and mechanical noise generated by stepper motors, smoothing the electrical signal transmitted to the motor coils.
This module improves print quality, reduces ghosting/moiré phenomena on printed parts and extends the mechanical life of motors.
950,00 DA
⚙️ Technical Specifications
🔌 Compatibility: works with most 3D and CNC printer motherboards.
⚡ Supported drivers: A4988, DRV8825, TMC2100, and other similar drivers.
📐 Compact size easy to install between driver and engine.
🔄 Reduction of vibrations through diode filtering.
🛠️ Simple installation: plug & play with standard connectors.
📊 Optimal effect on engines at low speeds or subject to torque variations.
✅ Benefits
- Improves the fluidity of axis movements.
- Reduces mechanical noise from engines.
- Decreases the ghosting phenomenon on 3D prints.
- Extends the life of engines and belts.
- Easy to install and compatible with most 3D printers.
🛠️ Applications
- 3D printers (Prusa, Creality, Anet, Anycubic, etc.).
- Engraving or cutting CNC using stepper motors.
- DIY projects requiring stepper motor stabilization.
