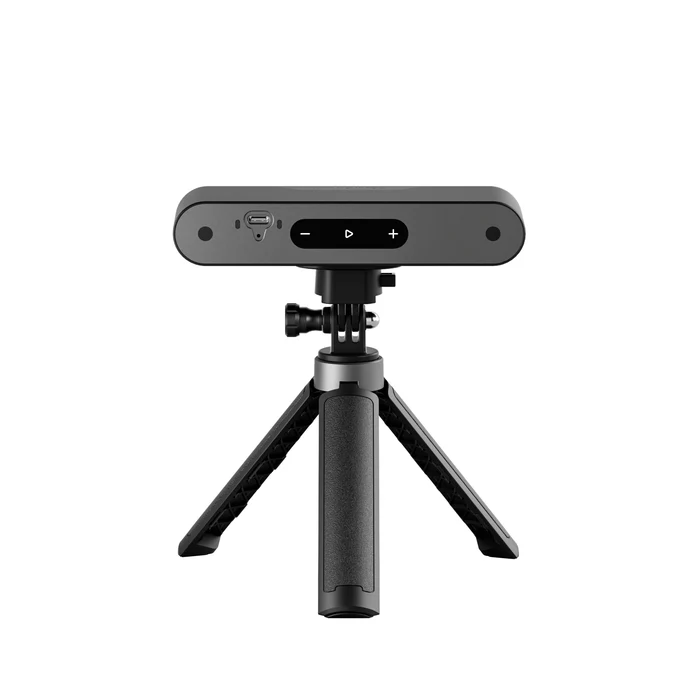

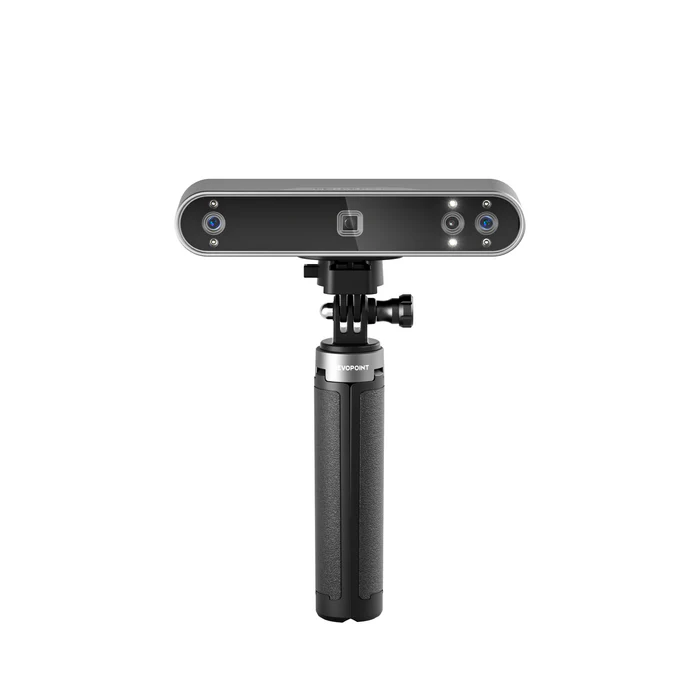

POP 3 Plus: The Handheld 3D Scanner with Color Scans – Revopoint

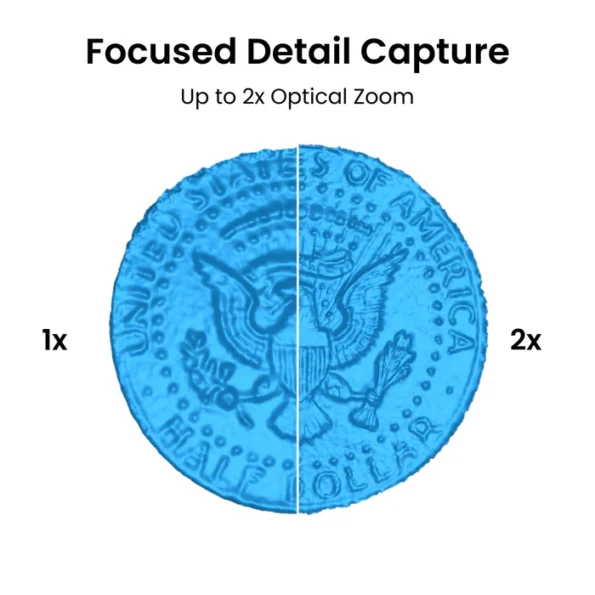

The POP 3 Plus updates the POP series with 20% better accuracy and precision and added optical zoom. Whether you need an accurate 3D model for 3D printing, animating, reverse engineering, modifying vehicles, or use it as a 3D face scanner, it’s ready to help.

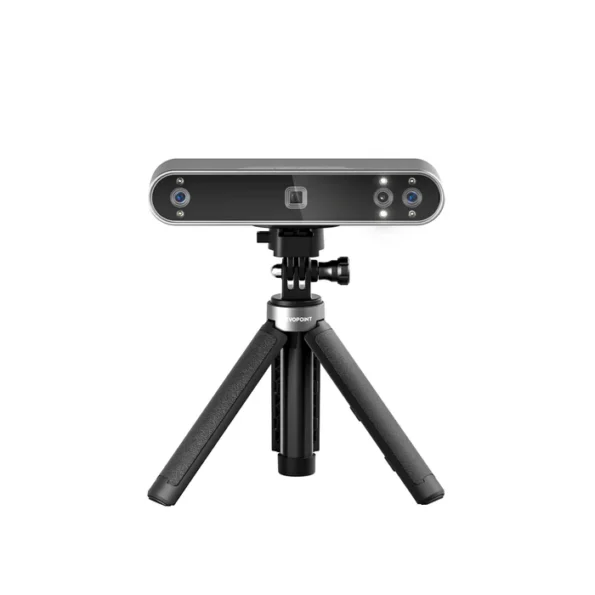

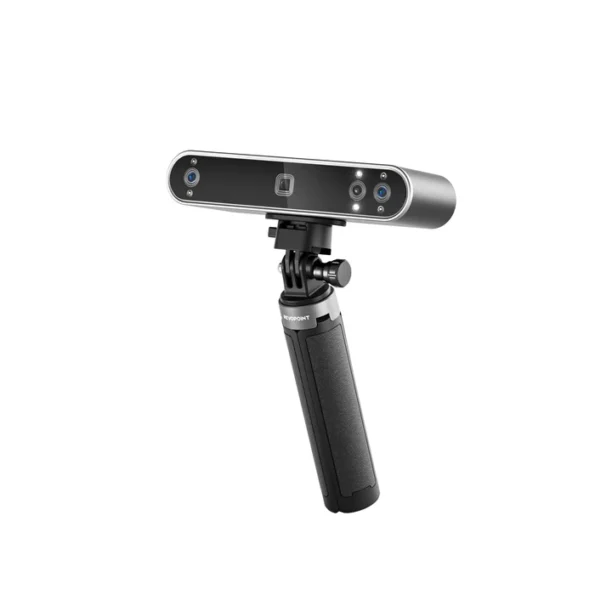

Product Name POP 3 Plus 3D Scanner

Technology Dual-camera Infrared Structured Light

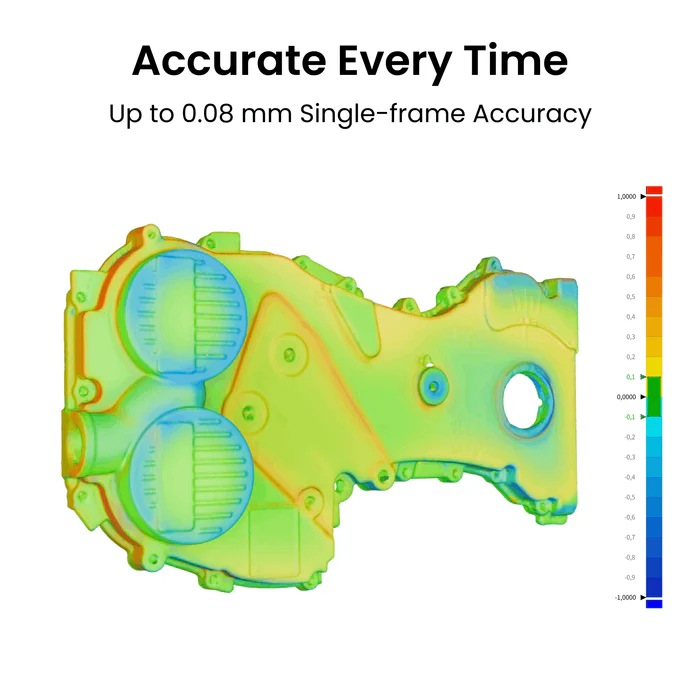

Single-frame Accuracy, up to 0.08 mm

Single-frame Precision, up to 0.04 mm

Scanning Speed，up to 18 fps

Fused Point Distance, up to 0.05 mm

Single Capture Area at Nearest Distance 61 x 68 mm at 150 mm

Single Capture Area at Furthest Distance 244 x 180 mm at 400 mm

Scanning Type Handheld and Desktop

Working Distance 150 ~ 400 mm

Minimum Scan Volume 20 x 20 x 20 mm

Maxmium Scan Volume 2 x 2 x 2 m

Auxiliary Lighting Infrared Fill Lights, White Flash LEDs

Angular Field of View(H x V) 40 x 25°

CPU 2 core, 1.6GHz

Position Sensors 9-axis IMU

Scanner Weight 190 g

Dimensions（L x W x H） 153 x 45 x 29 mm

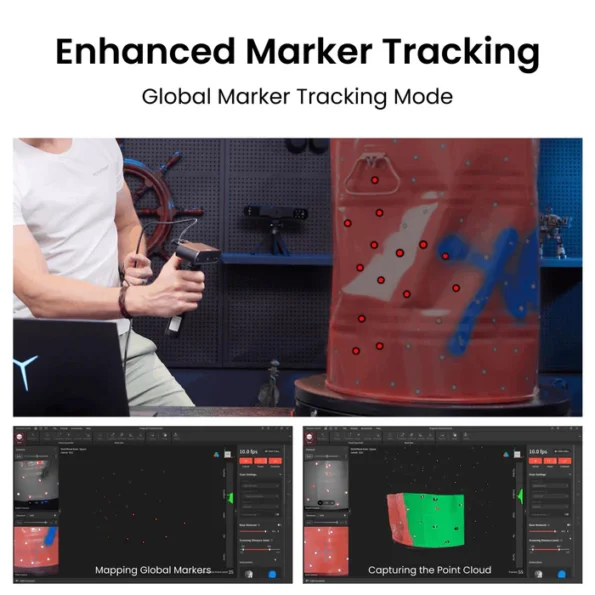

Tracking Methods Feature, Marker, Global Marker

Buttons 3

Connector Type USB Type-C

Power Requirements DC 5V, 1A

Wi-FI 6

Bluetooth 4.1

Special Object Scanning Use scanning spray for transparent, dark, or highly reflective objects

Scanning Environment Indoors and Outdoors

Ready to Print 3D Models Yes

Output File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

User Recalibration Yes

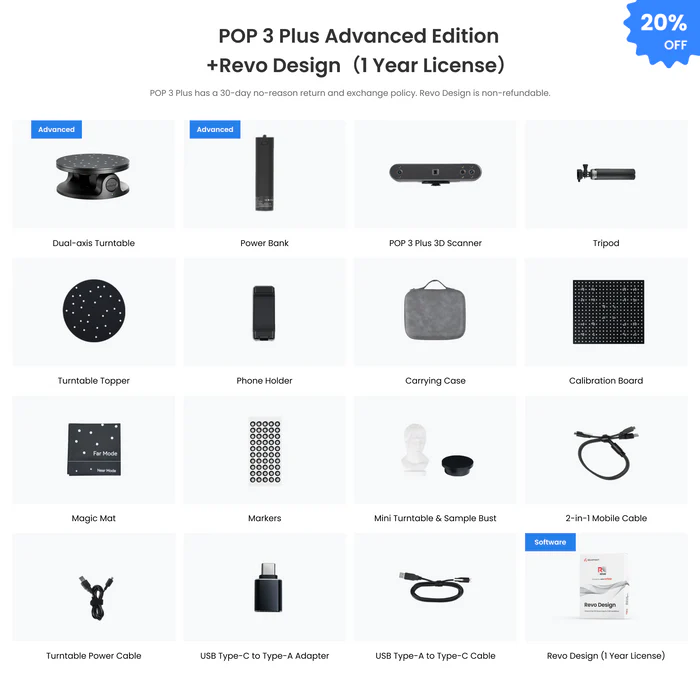

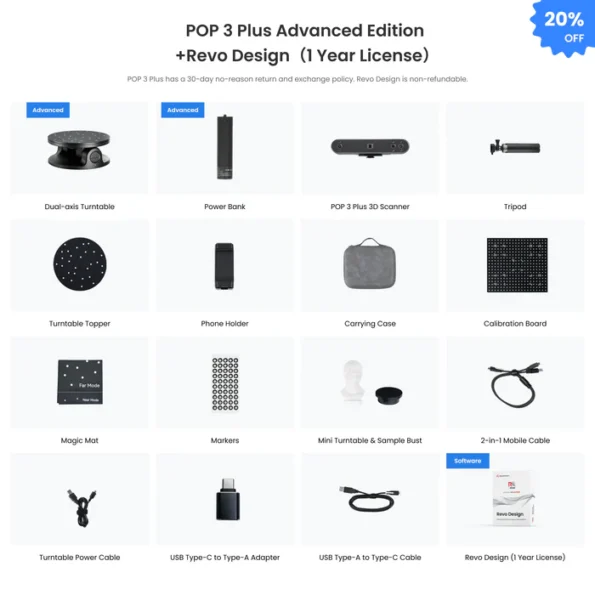

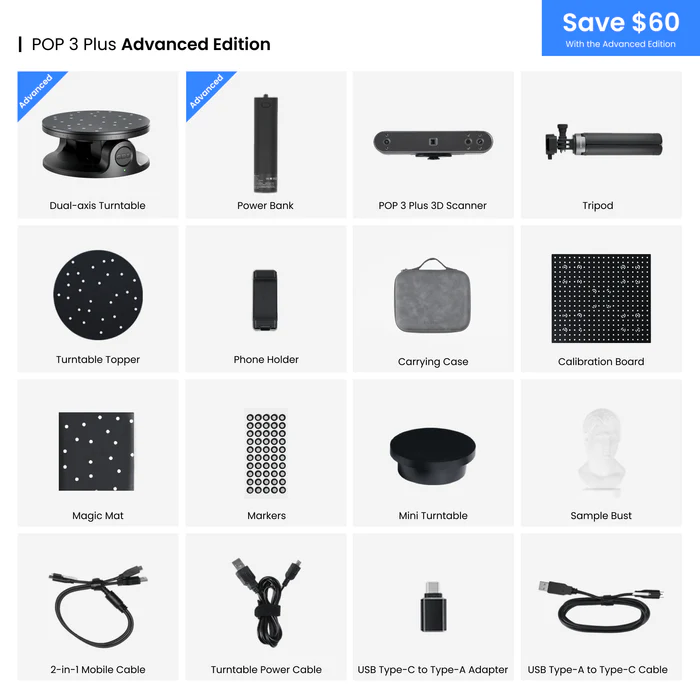

Supported Accessories Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit

Compatible Operating Systems Windows 10/11(64-bit), Android, iOS, macOS 11.0 or better

Light Type Class 1 Infrared Light (Eye Safe)

Minimum PC Requirements
macOS CPU: M1 Pro or better; RAM ≥ 8GB

Windows CPU: Intel i7 12th Gen or better; RAM ≥ 16GB

Recommended PC Requirements

macOS CPU: M3 or better; RAM ≥ 8GB
Windows CPU: Intel i9 11th Gen or better; RAM ≥ 32GB

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.
