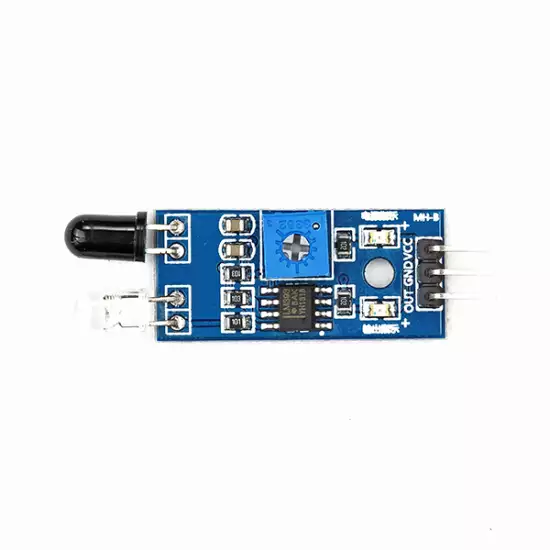

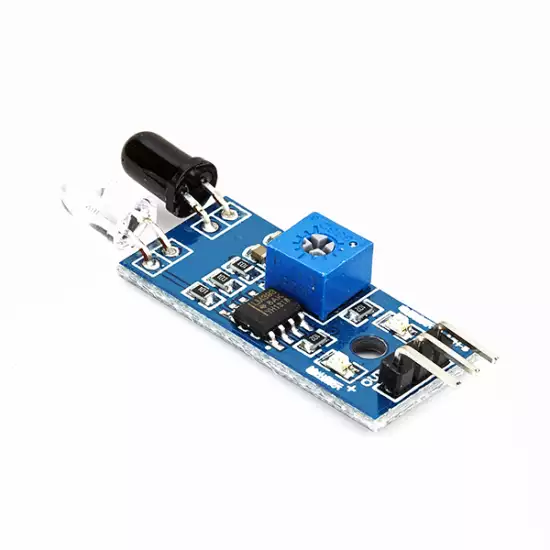

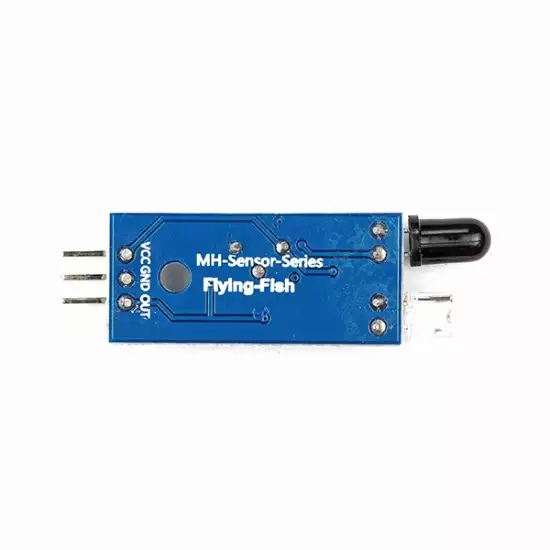

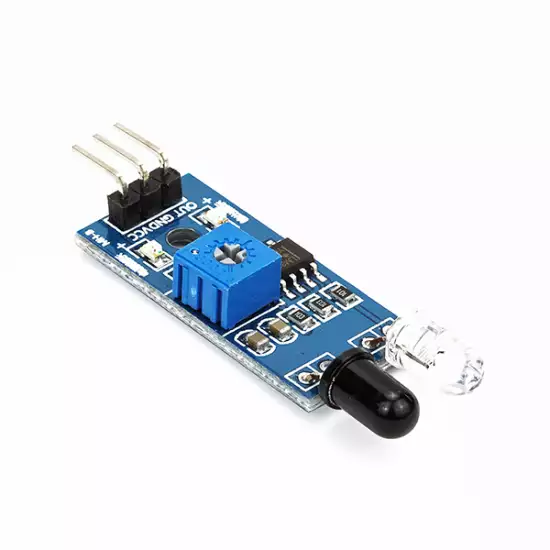

IR Infrared Obstacle Detector Module
The HW-201 IR infrared obstacle detection module can detect obstacles within a distance range of 2 cm to 30 cm, with a detection angle of 35 degrees.
It can operate with a supply voltage of 3.3 V to 5 V and has a maximum current consumption of 100 mA. The module outputs a digital signal, high when an obstacle is detected, low when no obstacle is detected.
The infrared LED has a wavelength of 940 nm and an operating frequency of 38 kHz. The module operates at temperatures between -25 °C and +55 °C.
400,00 DA
IR Infrared Obstacle Detection Module
The IR infrared obstacle detection module is an essential electronic component for robotics projects, alarm systems, and security devices. It can detect the presence of nearby obstacles and provide increased security.
The module is easy to use and can be integrated into a wide variety of electronic projects to enhance obstacle detection capabilities.
Technical Specifications:
-Detection Distance: 2 cm to 30 cm (ideally between 10 cm and 20 cm)
-Detection Angle: 35 degrees
-Operating Voltage: 3.3V to 5V
-Current Consumption: 100mA max
-Signal Output: Digital signal, high level when an obstacle is detected, low level when no obstacle is detected.
-Response Time: 2.5 ms
-Infrared LED Wavelength: 940nm
-Operating Frequency: 38kHz
-Operating Temperature: -25°C to +55°C
-Dimensions: 32mm x 14mm x 18mm
-Weight: 3g
| Brand | Arduino |
|---|
