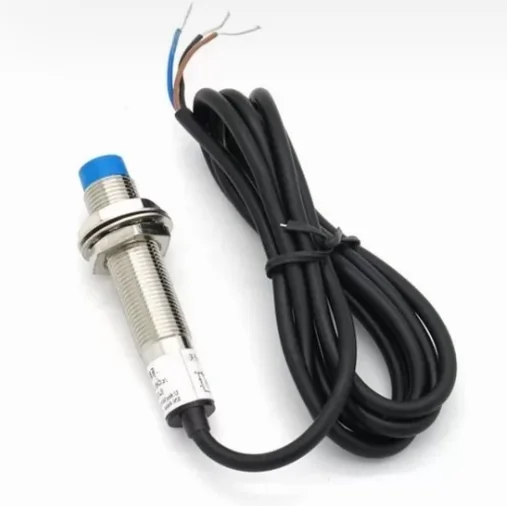

Inductive Proximity Switch Sensor NPN Normally Open 6-36VDC 4mm LJ12A3-4-Z/BX
The “LJ12A3-4-Z/BX” is an inductive proximity sensor that detects metal objects within a 4mm range. It operates on a DC 6-36V power supply and has an NPN (Normally Open) digital output, meaning it completes a circuit to the signal line when it detects metal. These sensors are used in industrial automation for non-contact switching, control, and detection
1.750,00 DA
DESCRIPTION:
- This Tube Type Inductive Proximity Sensor Detection Switch NPN DC6-36V 4mm Normally Open switch LJ12A3-4-Z/BX is a component widely used in the automatic control industry for detecting, controlling, and non-contact switching. When the proximity switch is close to some target object, it will send out a control signal.
- When the metal approaches the near-proximity switch sensing area, an Edy Current is induced in metal. Which in turn disturbs the magnetic field produced by the Inductive Proximity Sensor. This change is sensed by the sensor.
- This inductive proximity switches can be non-contact, no pressure, no spark, quickly issued the electrical command. Accurately reflect the position and stroke movement mechanism. Positioning accuracy, operating frequency, service life. Easy to install and suitable for harsh environments.
- This 4mm proximity sensor can detect a variety of metals, miniature size, long life, low price, shielded type installation, anti-interference ability, 1mm detection distance, using for precise positioning of molds, precision machine tools, and robots.
FEATURES:
- Red LED checks the state of the proximity sensor
- High repeated positioning accuracy
- High switching frequency
- Wide voltage range
- Outer (Theard) Diameter: M12
- Antivibration, dust, water, and oil prevention
- Reverse power protection, short circuit protection, directly connecting with PLC
- Can replace small switches and limit switches
