Arduino Nano
Arduino Nano has enough processing power to control many electronic components. It has several I/O pins, which allows to connect it to many components. , it is a compact and reduced version of Arduino uno maroc.
Arduino Nano has 14 digital inputs/types (6 of which can be used as PWM outputs), 8 analog inputs.
1.450,00 DA

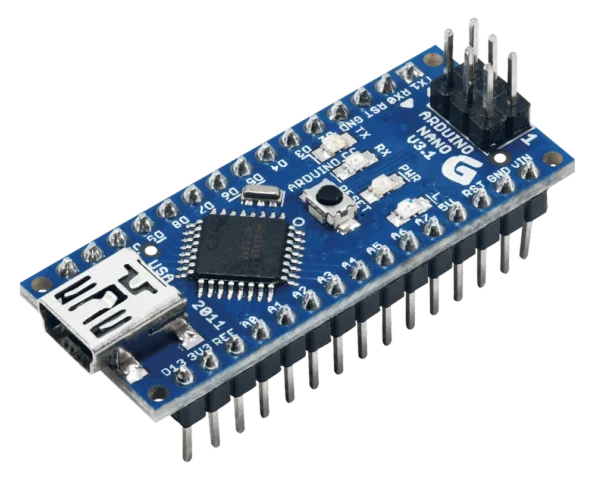

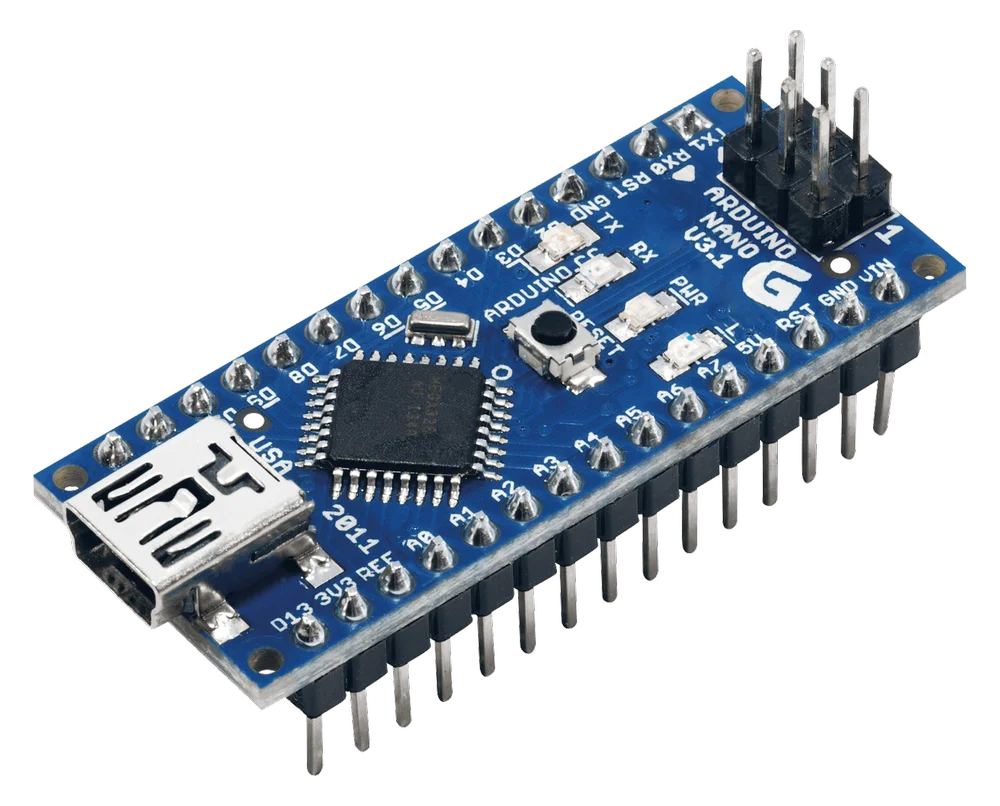

Arduino Nano is an open-source development board based on Atmel’s ATmega328P microcontroller. It is characterized by its small size and ease of use, while giving similar functionality to those of the Arduino Uno.

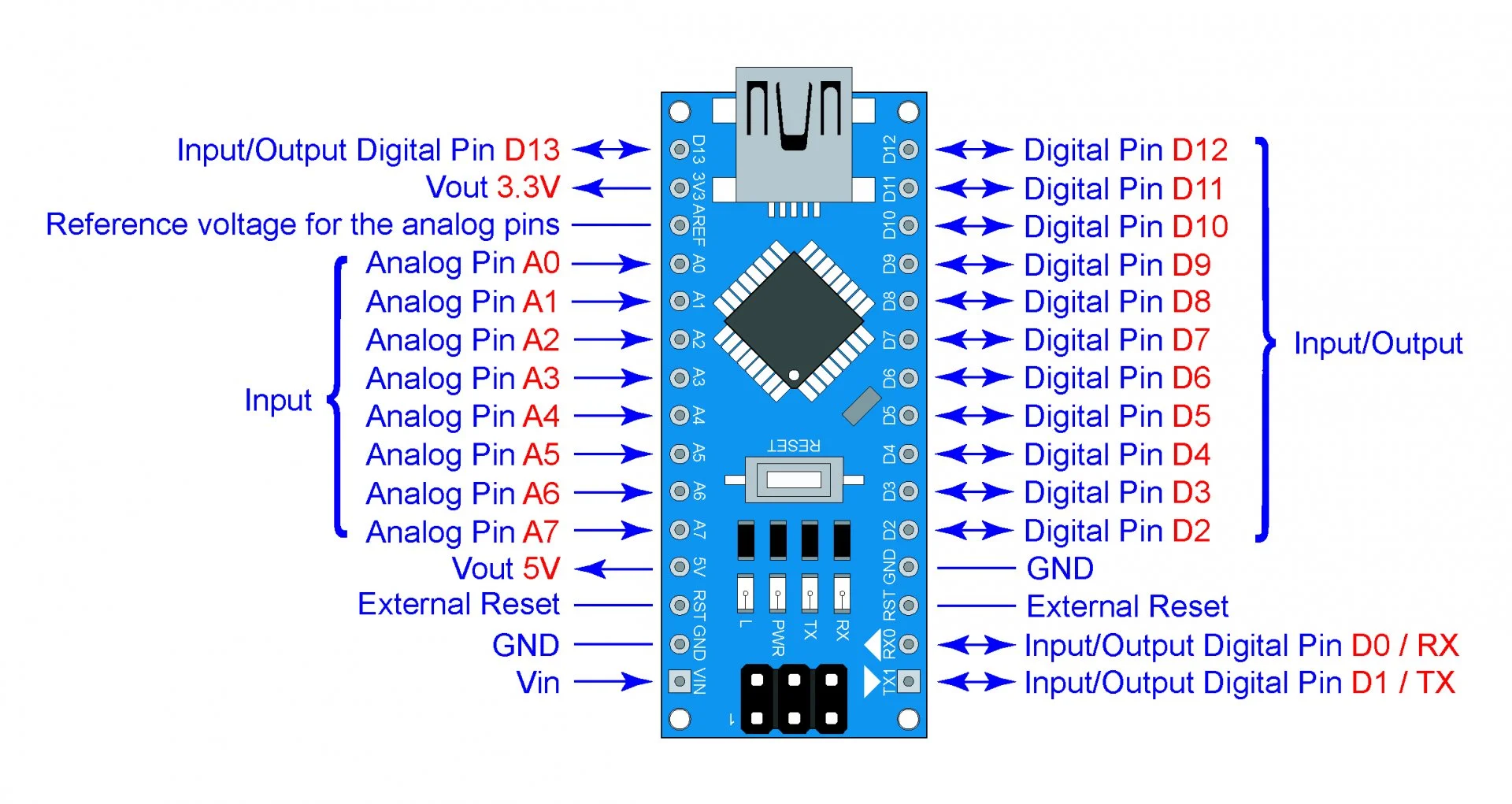

The card measures only 18 mm x 45 mm, making it very usable in projects where space is limited. The board has 14 digital input/output pins, 8 analog input pins, and one serial input/output pin.
It is powered by a voltage of 5 volts via a USB port or an external power connector.
Arduino NANO board features:
-Microcontroller: ATmega328
-Supply voltage: 5V
-Input voltage: 5 to 20 volts
-Analog input pin: 8
-Digital inputs/outputs: 14 (6 of which can be used as PWM outputs)
-16 MHz Quartz Oscillator
-ICSP Connector
-USB connection: type B
-DC per I/O pin: 40 mA
-DC for 3.3V pin: 50 mA
-Flash memory: 32 KB of which 2 KB is used by the bootloader
-SRAM: 2 KB
-EEPROM: 2 KB
-Clock frequency: 16 MHz
-Weight: 7g
-Dimension: 1.8 cm X 4.5 cm
-Power consumption: 19 mA
| Caractéristiques | Arduino Nano | Arduino Uno | Arduino Mega 2560 |
|---|---|---|---|
| Microcontrôleur | ATmega328P | ATmega328P | ATmega2560 |
| Horloge | 16 MHz | 16 MHz | 16 MHz |
| Flash | 32 Ko | 32 Ko | 256 Ko |
| RAM | 2 Ko | 2 Ko | 8 Ko |
| EEPROM | 1 Ko | 1 Ko | 4 Ko |
| Entrées/sorties numériques | 14 | 14 | 54 |
| Broches PWM | 6 | 6 | 15 |
| Entrées analogiques | 8 | 6 | 16 |
| Conversion analogique-numérique | 10 bits | 10 bits | 10 bits |
| Communication série | 1 | 1 | 4 |
| Tension d’entrée | 7-12 V | 7-12 V | 7-12 V |
| Tension de sortie | 5V/3.3V | 5V/3.3V | 5V/3.3V |
| Alimentation | USB ou externe | USB ou externe | USB ou externe |
| Dimensions | 18×45 mm | 68.6×53.4 mm | 101.6×53.4 mm |
| Brand | Arduino |
|---|
