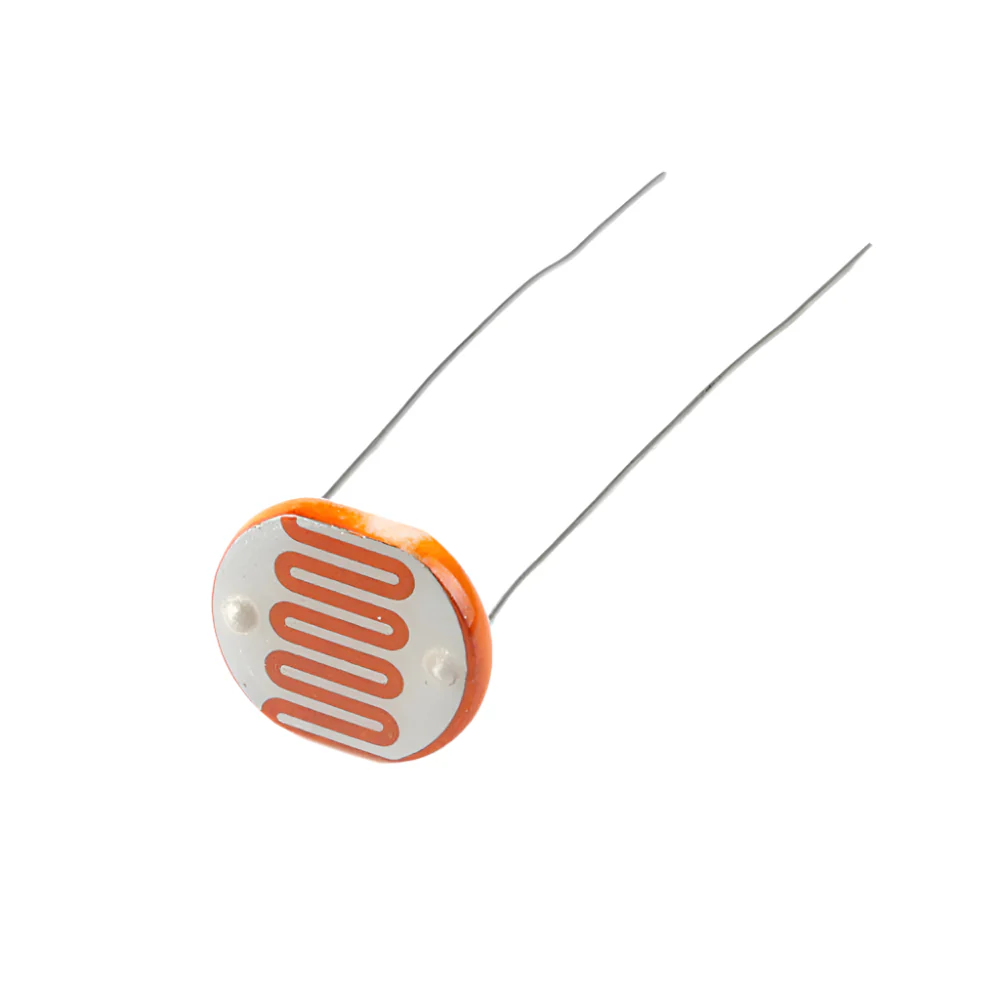

12mm 12528 LDR Light Dependent Resistor
12mm 12528 LDR is a type of photoresistor with a 12mm diameter and the model number GL12528, which changes its resistance based on the intensity of light it is exposed to. The resistance of the component is high in the dark and drops significantly as light increases, making it useful for detecting ambient light levels
120,00 DA
Description:
- Modèle: GL12528
- Accessible tension (V-cc): 250
- Accessible consommation d’énergie (mW): 200
- Température ambiante (°C): -30 — + 70
- Pic spectre (nm): 560
- Résistance brillante (10Lux) (KΩ): 10-20
- Sombre résistance (MΩ): 2
- 100λ10:0.6
- Temps de réponse (ms): hauteur: 30 gouttes: 30
- D’éclairement résistance caractéristiques: 3
