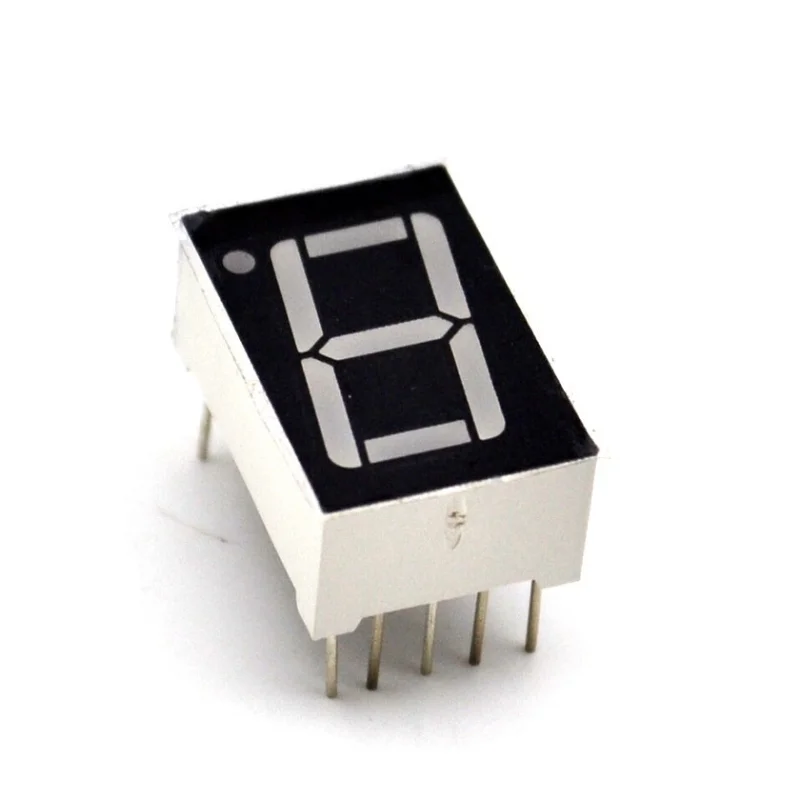

0.56 inch 1 Digit 7 Segment LED Display CC Red (5611AH)
Seven-segment display (5611AH):
- The 7-segment displays consist of a series of LEDs placed to form numbers.
- A 7-segment display allows you to view the digits from 0 to 9.
- Typical voltage: 2.2v / Current per segment max: 30mA
DESCRIPTION:
- A seven-segment display is a seven-segment-based display technique that can be turned on or off depending on the graphic pattern to be produced.
- The 7-segment displays consist of a series of LEDs placed to form numbers.
- A 7-segment display allows you to view the digits from 0 to 9.
Specifications:
- Product Name: LED Digital Display Tube; Type: Common Cathode; Model: 5611AH
- Common Cathode: 3-8; Digital Display: 1 Digit; Digital Number: 1 Bit 7 Segment; Emitted Color: Red
- Pin Number: 10; Continuous Forward Current: 20mA; Average Forward Voltage: 2V; Power Consumption: 36mW
- Luminous Intensity: 11mcd; Number Height: 0.55 inch; Panel Size: 19 x 12.7 x 8mm / 0.75″ x 0.5″ x 0.31″ (L*W*H); Total Size: 19 x 12.7 x 14mm / 0.75″ x 0.5″ x 0.55″ (L*W*H)
Advantages :
- low consumption
- high brightness
- high intensity and reliability
- easy assembly
