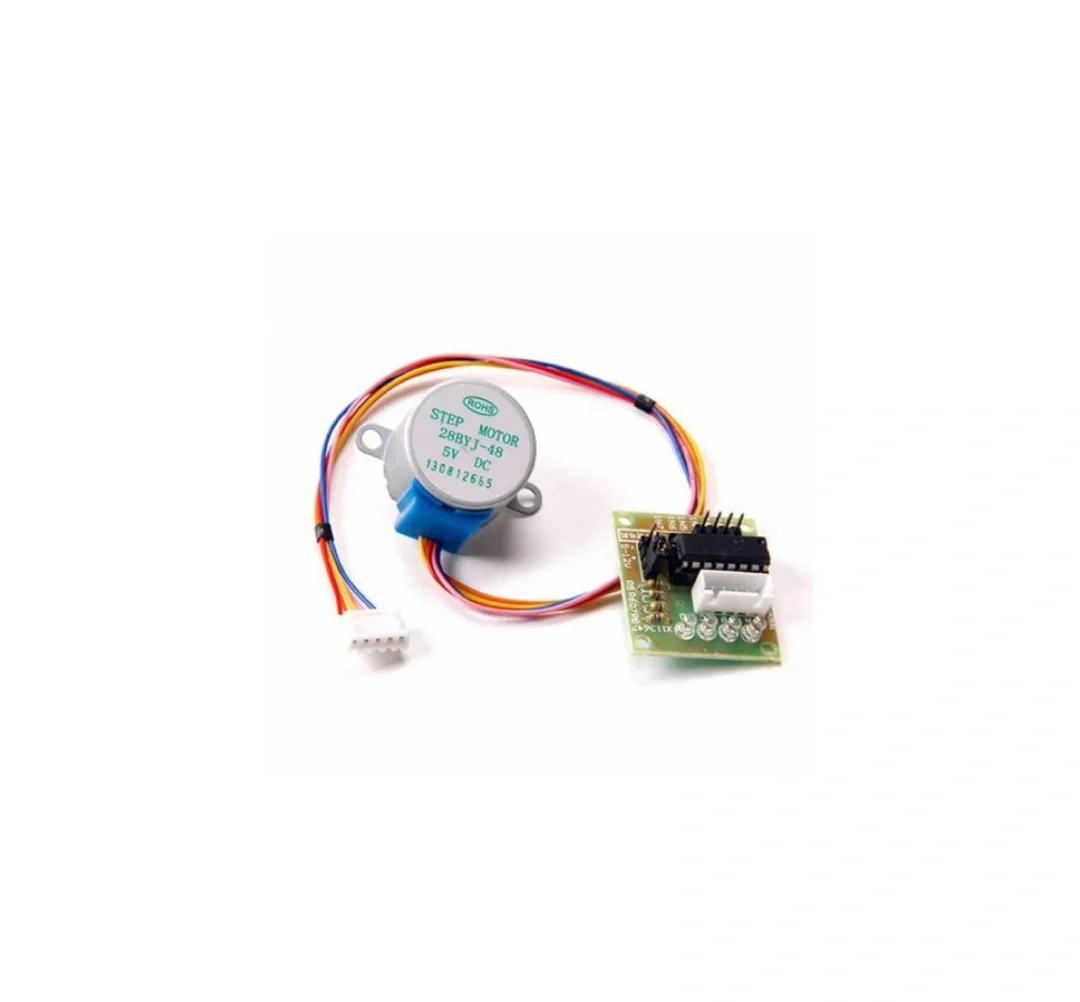

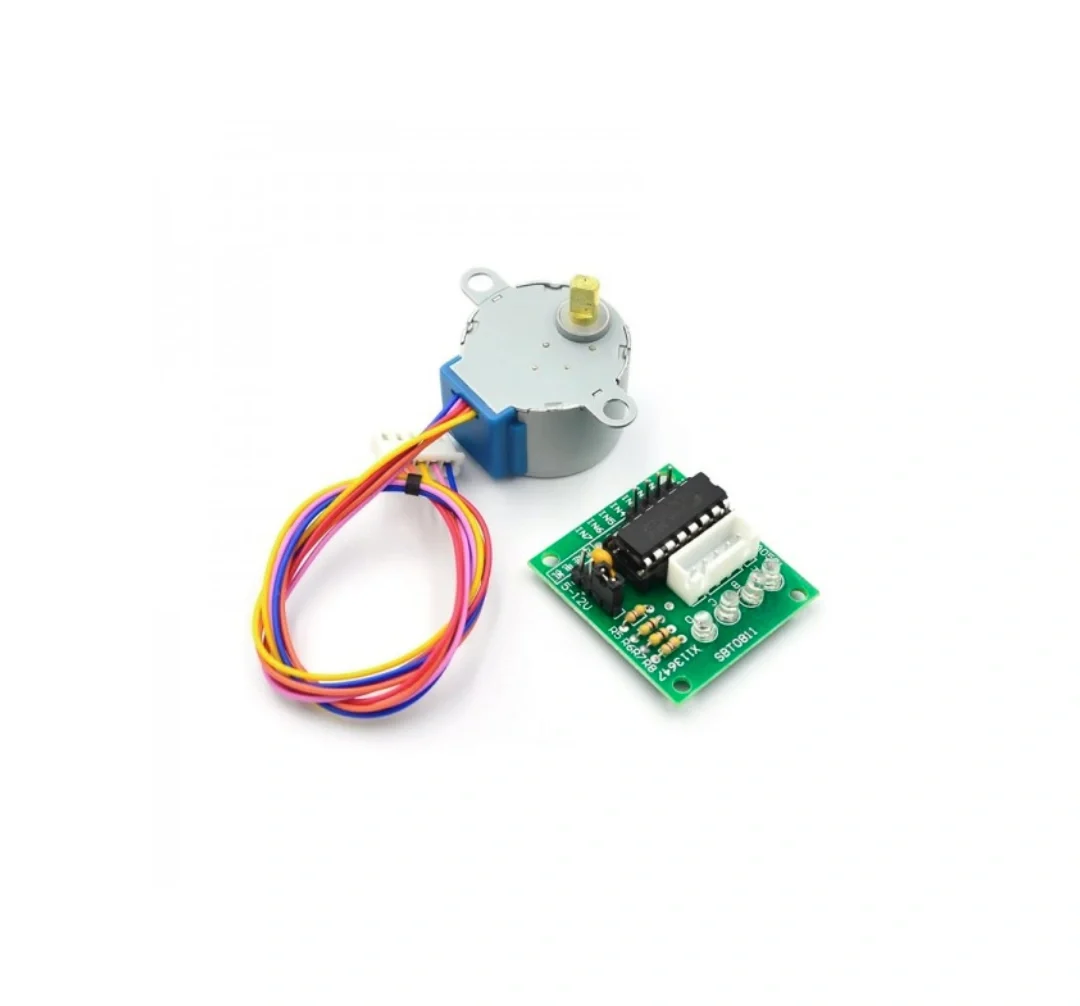

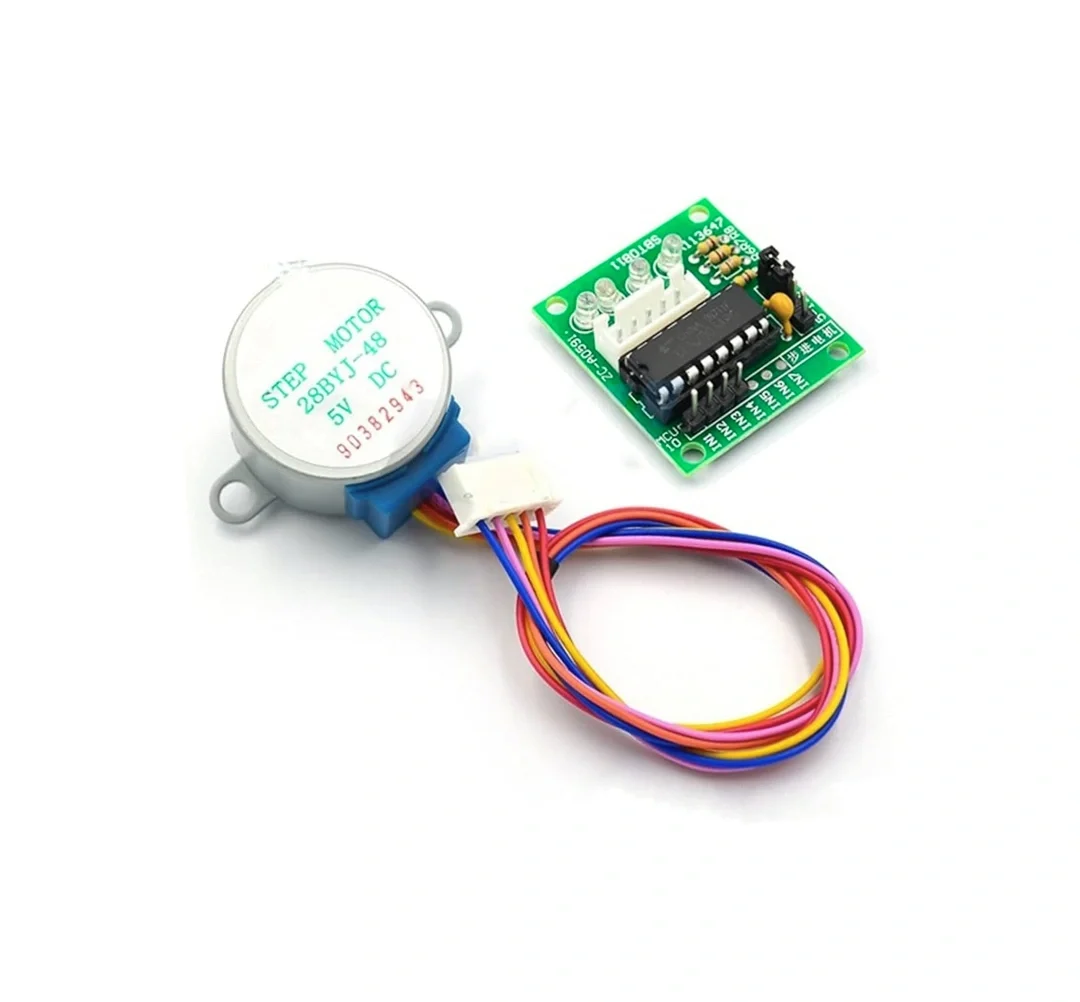

Stepper Motor 28BYJ-48 With Driver ULN2003
Stepper motor 28BY J-48 with Driver ULN2003
the ULN2003 stepper motor driver or in English stepper motor, unipolar (4 phases/ 5 wires ) allows you to easily plug the small motor 28BY J-48 5v gràce to the 5 pin male connector and connects easily to an arduino or other through a 4 pin connector for control signals and Gnd (ground/-). The power supply of ULN2003 is between 5 and 12V.
750,00 DA
Stepper Motor With Driver ULN2003
the ULN2003 stepper motor driver (in English stepper motor) unipolar (4 phases/ 5 wires ) allows to easily connect the small motor 28BY J-48 5v through the 5-pin male connector and connects easily to an Arduino or other through a 4-pin connector for control signals and GND (ground/-). The power supply of ULN2003 is between 5 and 12V.

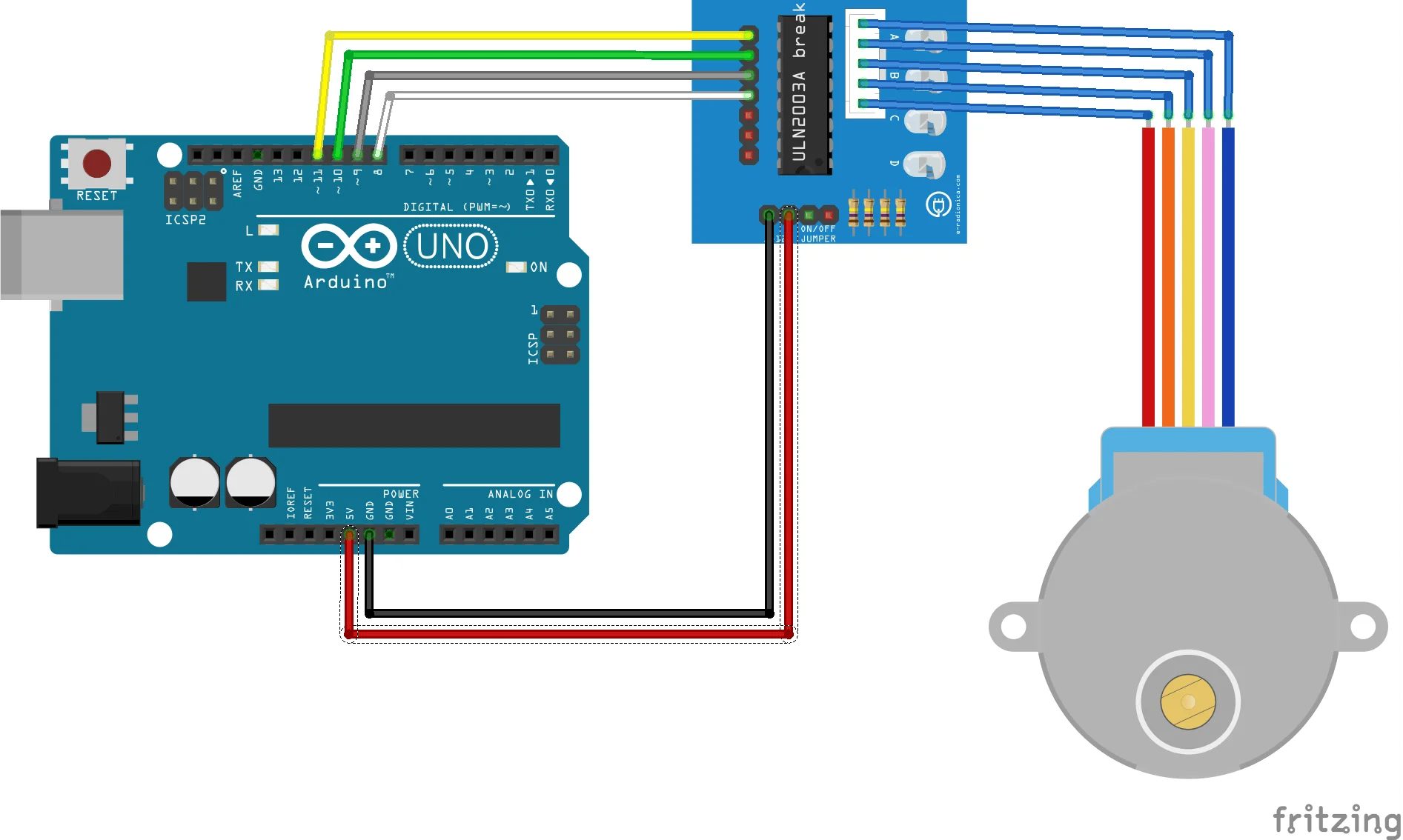

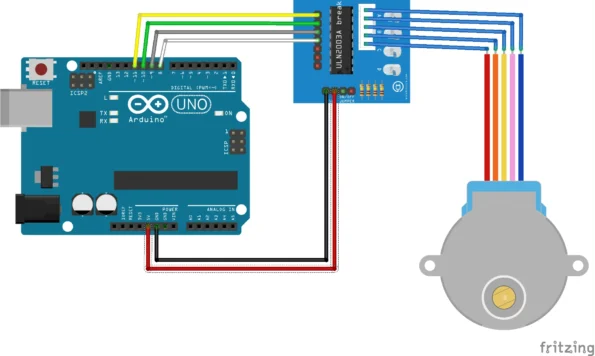

Stepper Motor with Driver ULN2003 is Compatible Arduino and Raspberry Pi.
Driver ULN2003 Features:
-Operating voltage: 5V
-Driving voltage: 5V-12V
-Module dimensions: 31mm x 35mm
Characteristics Motor Step 28BY D-48:
- Tension: 12VDC
- Nombre de pôles: 4
- Speed Variation Ratio: 1/64
- Stride Angle: 5.625° /64
- Résistance: 200Ω±7%(25℃)
- Idle In-traction Frequency: >600Hz
- Idle Out-traction Frequency: >1000Hz
- Torsion en fonctionnement: >34.3mN.m(120Hz)
- Insulated resistance: >10MΩ(500V)
- Insulated electricity power: 600VAC/1mA/1s
- Insulation grade: A
- Rise in Temperature: <40K(120Hz)
- Bruit: <40dB(120Hz,No load,10cm)
